High Yield Rate Impact Crusher Machine Used In Railroad Highway Industries

Name: High Yield Rate Impact Crusher Machine Used In Railroad Highway Industries
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 5 (106 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Coarse And Medium Crushing Equipment	Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock	Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency	Key Selling Points:	High Yield Rate ,Low Operation Cost

Name:	Coarse And Medium Crushing Equipment
Production Capacity:	Various
Applicable Materials:	Iron Ore, Steel Slag, Phosphate Rock
Application:	Highway, Railroad, Chemical Industry
Feature:	High Efficiency
Key Selling Points:	High Yield Rate ,Low Operation Cost

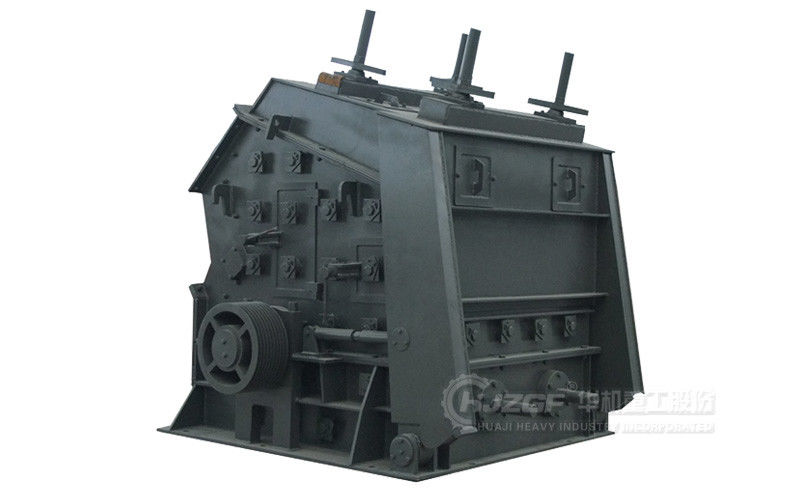

High Yield Rate Impact Crusher Machine Used In Railroad Highway Industries

Impact Crusher product description

Impact crusher is suitable for crushing solid materials with compressive strength not exceeding 350Mpa, such as granite, basalt, iron ore, manganese ore, limestone, gold ore, concrete, etc. It is characterized by large crushing ratio, good crushing granularity, compact structure, reliable performance, long life of plate hammer and easy maintenance. It has the features of large crushing ratio, good crushing grain shape, compact structure, reliable performance, long life of plate hammer and convenient maintenance. Therefore, it is widely used in railroad, highway, cement, mining, chemical industry, construction and other industries.

Impact Crusher working principle

Impact crusher is a kind of crushing machinery which utilizes the impact energy to crush materials. When the rotor is driven by the electric motor, the rotor rotates at a high speed, and the materials enter into the area of plate hammer action, and the plate hammers on the rotor impact and crush, and then are thrown to the impact device to be crushed again, and then bounced back to the area of plate hammer action to be re-crushed from the impact lining plate, and the process repeats itself, i.e., the materials are crushed by the impact of each other in the first impact area, and then enter into the second impact area to be impacted and crushed again until the materials are crushed to the adjusted particle size, and are discharged by the discharging port.

Impact Crusher Technical Parameters

Model	norm (mm)	Inlet size (mm)	Feed size (mm)	Output granularity (mm)	production capacity (t/h)	Motor power (Kw)
PF-1007	φ1000×700	400×730	≤300	≤20	30-70	45
PF-1010	φ1000×1050	400×1080	≤350	≤25	50-90	55
PF-1210	φ1250×1050	400×1080	≤350	≤30	70-130	110
PF-1214	φ1250×1400	400×1430	≤350	≤40	100-180	132
PF-1315	φ1320×1500	860×1520	≤500	≤50	130-250	220
PF-1520	φ1500×2000	830×2040	≤700	≤72	300-550	440
