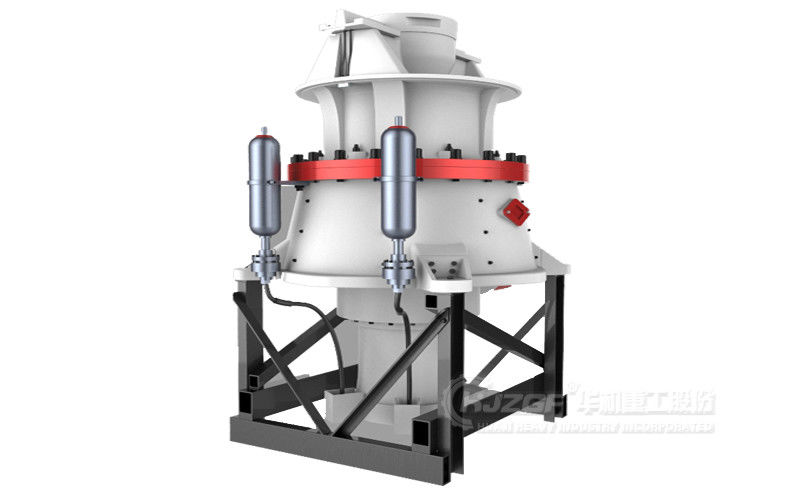

Hydraulic Cone Crusher Equipment Simple Operation High Output

Name: Hydraulic Cone Crusher Equipment Simple Operation High Output
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (136 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Hydraulic Cone Crusher Equipment Simple Operation High Output

Hydraulic Cone Crusher product description

GP series single-cylinder hydraulic cone crusher is a new type of high-efficiency crusher independently researched, developed and designed by our company on the basis of more than twenty years of crushing experience and extensive absorption of domestic and foreign advanced crusher technology. The cone crusher integrates mechanical, hydraulic, electrical and intelligent control technologies, with reasonable equipment structure, low operation and maintenance costs, fully automatic control, constant discharge opening, and large eccentric distance suitable for medium and fine crushing of various types of ores. It has the advantages of simple operation, high output, low maintenance, wide range of application and high efficiency.

Hydraulic Cone Crusher working principle

When GP Series Single Cylinder Hydraulic Cone Crusher is in operation, the motor drives the drive shaft to rotate through the belt pulley and triangle belt, and the drive shaft drives the eccentric sleeve to rotate through the large and small bevel gears, and the movable cone rotates through the main shaft to make the rotary oscillation under the action of the eccentric sleeve, so that the movable cone and the fixed cone are close to the rolling mortar wall and far away from it, and the materials are continuously crushed by the squeezing and impacting in the crushing chamber between the rolling mortar wall and the crusher, and the crushed materials are discharged from the lower part of the crusher.

Hydraulic Cone Crusher Technical Parameters

number	Cavity	feed opening (mm)	Maximum feed size (mm)	Minimum Discharge(mm)			Maximum discharge(mm)			Motor power (Kw)
number	Cavity	feed opening (mm)	Maximum feed size (mm)	stroke	stroke	stroke	stroke	stroke	stroke	Motor power (Kw)
GP100				16	22		16	22		90
	A	150	120	12	15		39	37
	B	130	105	10	11		33	31
	C	100	85	7	9		33	30
	D	40	32	5	6		31	29
GP220				18	25		18	25		160
	A	220	180	18	22		35	30
	B	150	120	15	19		35	30
	C	80	60	9	12		35	30
	D	40	32	6	8		35	30
GP300				25	32		25	32		250
	A	230	190	20	25		45	40
	B	150	125	17	20		45	40
	C	80	60	10	13		40	35
	D	40	32	6	8		40	35
GP500				25	32	40	25	32	40	315
	A	230	180	22	26	30	50	45	40
	B	150	125	19	22	26	48	43	38
	C	100	80	12	14	16	40	35	30
	D	50	40	8	10	12	30	25	20
