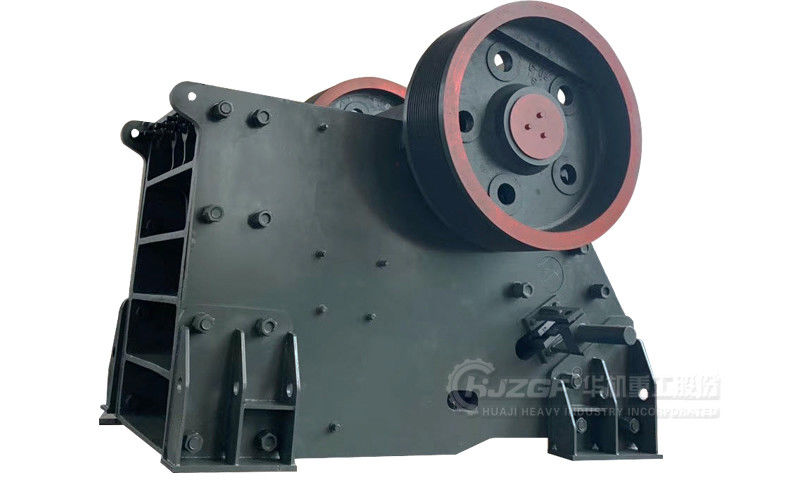

Jaw Crusher Coarse And Medium Crushing Equipment Used In Mining Industry

Name: Jaw Crusher Coarse And Medium Crushing Equipment Used In Mining Industry
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (199 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Jaw Crusher Coarse And Medium Crushing Equipment Used In Mining Industry

Jaw Crusher product description

Jaw crusher is suitable for crushing hard materials (compressive strength < 250Mpa), such as iron ore, steel slag, phosphate rock, silica ore, copper ore, limestone, quartzite, ceramics and its hardness equivalent to the coarse crushing of solid materials, such as a variety of mineral processing plant of the large coarse crushing, stone plant large coarse crushing, cement plant limestone large coarse crushing, etc.. With the features of large crushing ratio, low maintenance cost, low power consumption and reliable performance, it can be widely used in mining, stone plant, building materials, metallurgy, ceramics and other industries.

Jaw Crusher working principle

Jaw crusher is driven by the motor belt and pulley, through the eccentric shaft to make the movable jaw up and down movement, when the movable jaw rising elbow plate and the movable jaw between the angle becomes larger, so as to promote the jaw plate to the fixed jaw plate close to the same time with the material is crushed or split, to achieve the purpose of crushing; when the movable jaw downward, the elbow plate and the movable jaw angle becomes smaller, the movable jaw plate in the tie rod, the role of the spring, away from the fixed jaw plate, then crushed material from the bottom of the crushing cavity discharged with the continuous rotation of the motor and crusher jaw for the period operation of the crushing material, crushed into the desired particles from the discharge port discharge.

Jaw Crusher Technical Parameters

Model	Inlet size (mm)	Feed size (mm)	Output granularity (mm)	production capacity (t/h)	Motor power (Kw)
PE-400×250	400×250	＜210	20-60	5-20	15
PE-400×600	400×600	＜340	40-80	16-65	30
PE-500×750	500×750	＜425	50-100	45-100	55
PE-600×900	600×900	＜500	60-120	50-120	75
PE-750×1060	750×1060	＜630	80-140	115-210	90
PE-900×1200	900×1200	＜750	95-165	140-260	110
PE-1200×1500	1200×1500	＜1100	110-200	300-800	160
PE-1500×1800	1500×1800	＜1200	220-350	500-1000	315
