High Pressure Roller Mill Press Machine Solid Material Grinding Equipment

Name: High Pressure Roller Mill Press Machine Solid Material Grinding Equipment
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 5 (116 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Medium And Fine Crushing Equipment	Feature:	Reliable Performance
Application:	Solid Materials	Production Capacity:	Various
Applicable Materials:	Iron Ore, Quartzite, Potassium (sodium) Feldspar, Limestone, River Pebbles	Key Selling Points:	High Productivity

Name:	Medium And Fine Crushing Equipment
Feature:	Reliable Performance
Application:	Solid Materials
Production Capacity:	Various
Applicable Materials:	Iron Ore, Quartzite, Potassium (sodium) Feldspar, Limestone, River Pebbles
Key Selling Points:	High Productivity

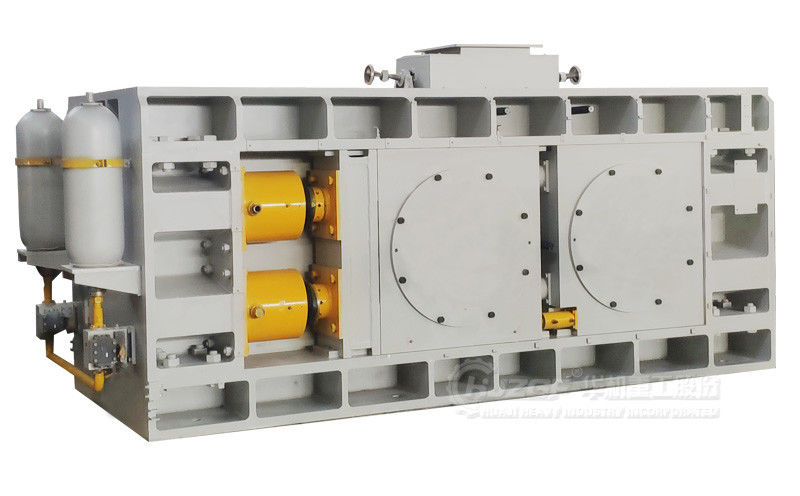

High Pressure Roller Mill Press Machine Solid Material Grinding Equipment

High Pressure Roller Mill (Press) Machine product description

High Pressure Roller Mill (Press) is a reliable solid material grinding equipment developed by our company on the basis of introducing and absorbing the advanced technology of German roller press, combining with the advantages of Humboldt and Burlicht Roller Press, which is suitable for the fine crushing and medium crushing of solid materials with the compressive strength of less than 300Mpa and the moisture of less than 30%, and it can be widely used in the industries of cement, mining, metallurgy, ceramics, etc. It is equipped with two solid crushing rollers, and the roll surface adopts the surfacing roller surface or column nail roller surface.

High-pressure roller mill (pressure) is equipped with two solid crushing rollers, the roller surface adopts pile-welded roller surface or studded roller surface, which is suitable for the fine grinding operation with the feed size less than 60mm and the finished product size below 3mm. Such as pre-crushing clinker, limestone and composite materials before mill in cement and aluminum industry; crushing iron ore and steel slag in iron ore industry; crushing quartz stone in quartz mining industry; crushing all kinds of ores to make free-burning bricks in brick-burning factory, etc.; or crushing occasions similar to the above.

High Pressure Roller Mill (Press) Machine working principle

The main body of high-pressure roller mill (press) machine relies on two relatively rotating solid crushing rollers, the material through the roller press fabrication device, into the relative rotation of the roller gap (V-shaped crushing chamber), using high-pressure layer crushing principle, the material after high-pressure extrusion (general pressure set to 150Mpa), completely destroy the internal crystal structure of the material, so that the material produces a large number of micro-cracks, the material mechanism changes, so that to achieve the dense material cakes and powders, and finally from the two rollers fall in the gap by the discharge port discharged.

High Pressure Roller Mill (Press) Machine Technical Parameters

number	Specification	Feed size (mm)	Output granularity adjustable(mm)	production capacity (t/h)	Motor power (Kw)	Protection mode
1	2PGY-150	＜45	2-20	120-160	200×2	hydraulically
2	2PGY-200	＜45	2-20	180-240	370×2
3	2PGY-260	＜50	2-20	270-350	450×2
4	2PGY-300	＜60	2-20	400-510	630×2
5	2PGY-400	＜70	2-20	500-620	900×2
6	2PGY-500	＜70	2-20	600-750	1000×2
7	2PGY-700	＜80	4-20	800-1000	1600×2
