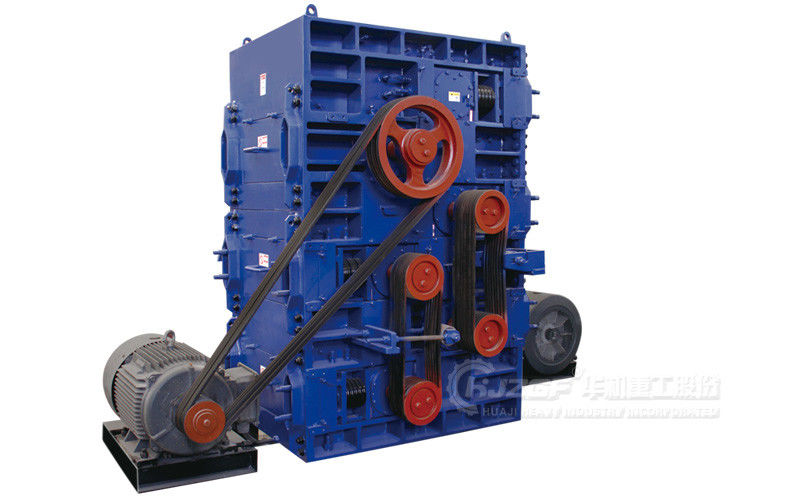

Six Roller Five Crusher Equipment Large Crushing Ratio Reliable Performance

Name: Six Roller Five Crusher Equipment Large Crushing Ratio Reliable Performance
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (171 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Name:	Medium And Fine Crushing Equipment	Feature:	Reliable Performance
Application:	Solid Materials	Production Capacity:	Various
Applicable Materials:	Iron Ore, Quartzite, Potassium (sodium) Feldspar, Limestone, River Pebbles	Key Selling Points:	High Productivity

Name:	Medium And Fine Crushing Equipment
Feature:	Reliable Performance
Application:	Solid Materials
Production Capacity:	Various
Applicable Materials:	Iron Ore, Quartzite, Potassium (sodium) Feldspar, Limestone, River Pebbles
Key Selling Points:	High Productivity

Six Roller Five Crusher Equipment Large Crushing Ratio Reliable Performance

Six Roller Five Crusher product description

Six rolls and five crusher is suitable for ultra-fine crushing of solid materials with compressive strength less than 2,400Mpa and water less than 30%, such as coke, coal, ceramic raw materials, ores, water slag, gypsum, clay, salt, chemical raw materials and other solids, with low maintenance cost, large crushing ratio, reliable performance, low dust, low noise and other characteristics.

The six roller surfaces are divided into surfaced rollers, studded alloy rollers or flat rollers, which can be selected and combined according to the user's requirements for particle size, and are suitable for ultra-fine crushing operations with a feed size of less than 90 mm and a finished product size of 0.1-5 mm. It is suitable for ultra-fine crushing operation with feed size less than 90 mm and finished product size 0.1-5mm. Such as mining industry crushing quartz stone, iron ore; ceramic industry crushing feldspar; thermal power plant crushing limestone; cement plant crushing slag; building materials plant crushing gypsum; chemical industry crushing all kinds of chemical raw materials, etc.; or similar crushing occasions with the above.

Six Roller Five Crusher working principle

Six rolls and five crushing crusher utilizes six high-strength wear-resistant alloy crushing rolls, which rotate relative to each other to produce high squeezing force and shear force to crush materials. After the material enters into the top two rolls V crushing chamber, it is squeezed by the relative rotation of the upper two rolls, and the material is squeezed and ground for the first time (coarse crushing), and then it enters into the relative rotation of the two and three rolls V crushing chamber for the second squeezing and grinding (fine crushing), and then it enters into the three and four rolls V crushing chamber for the third squeezing, and then it enters into the four and five rolls V crushing chamber for the fourth squeezing, and then it enters into the five rolls V crushing chamber for the fifth squeezing and shearing, and then it enters into the six rolls V crushing chamber for the fifth squeezing and shearing, and finally it enters into the five, After entering into the V-type crushing chamber of three or four rolls for the third squeeze, entering into the V-type crushing chamber of four or five rolls for the fourth squeeze, and finally entering into the V-type crushing chamber of five or six rolls for the fifth squeeze, shearing and grinding (ultra-fine crushing), the product will be crushed into the required granularity and discharged from the discharge.

Six Roller Five Crusher Technical Parameters

number	Specification	Feed size (mm)	Output granularity tunable(mm)	production capacity (t/h)	Motor power (Kw)	Protection mode	transmission method
1	6PGS-10PT	＜20	0.1-5	2-30	33-45	sprung	triangle or coupling
2	6PGS-30PT	＜40	0.1-5	5-60	52-67
3	6PGS-50PT	＜40	0.1-5	8-90	67--82
4	6PGS-60PT(Y)	＜60	0.1-5	12-120	82-100	sprung or hydraulically
5	6PGS-80PT(Y)	＜60	0.1-5	20-180	100-132
6	6PGS-100PT(Y)	＜80	0.1-5	30-220	132-165
7	6PGS-120PT(Y)	＜90	0.1-5	45-320	165-200
8	6PGS-150PT(Y)	＜90	0.1-5	55-400	200-250
9	6PGS-180PT(Y)	＜90	0.1-5	70-500	242-300
