Simple Structure Single Roll Crusher Machine Low Power Consumption

Name: Simple Structure Single Roll Crusher Machine Low Power Consumption
Brand: Huaji
SKU: Huaji
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (136 reviews)

Product Details

Place of Origin: China

Brand Name: Huaji

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Simple Structure Single Roll Crusher Machine Low Power Consumption

Single Roll Crusher product description

The single tooth roll crusher is suitable for coarse crushing of solid materials below medium hardness (compressive hardness < 150Mpa), such as sintered ore, coal, slag, oil shale, soft ore and other materials. It is characterized by large crushing ratio, high temperature resistance, simple structure, reliable performance and low power consumption. It can be used in metallurgy, coal mine, electric power, chemical industry, mining and other industries.

Single Roll Crusher working principle

Single-tooth roll crusher is a new type of coarse crushing equipment designed by combining the advantages of roll crusher and jaw crusher together and utilizing the advantages of these two types of crusher.

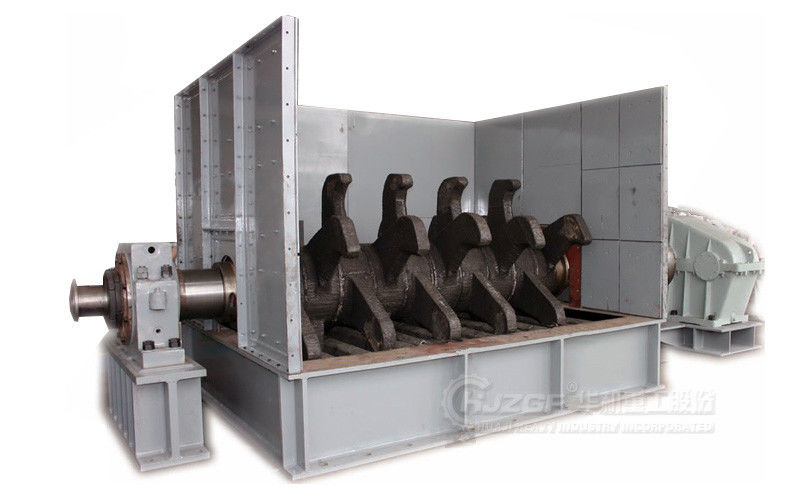

The single roll crusher is composed of a toothed roll and a set of fixed screen plate, the toothed roll is driven by the motor, reducer and coupling, the large materials from the inlet into the crushing cavity consisting of toothed roll and screen plate, by the impact of the crushing teeth and splitting effect, the material will be crushed to the required size. In order to ensure the reliability of the single-tooth roll crusher under high temperature environment, the hollow spindle water circulation cooling method is adopted to control the bearing temperature within a certain range.

Single Roll Crusher Technical Parameters

Model	Feed size (mm)	Output granularity (mm)	Outer diameter of toothed roller (mm)	Length of toothed rollers (mm)	Number of rows of toothed rollers (platoon)	Number of teeth per row (an)	production capacity (t/h)	Motor power (Kw)	speed reducer (Model)
PG1100×1620	≤1500×1000×500	≤150	φ1100	1620	5	3	120	22	ZS125-11-1
PG1100×1860	≤1500×1000×250	≤100	φ1100	1860	7	3	140	22	ZS125-11-1
PG1100×1860	≤1500×1000×250	≤150	φ1100	1860	6	3	140	22	ZS125-11-1
PG1100×1860A	≤1500×1000×250	≤120	φ1100	1860	8	3	130	22	ZS125-11-1
PG1100×1860B	≤1500×1000×250	≤100	φ1100	1860	10	3	110	30	ZS125-11-1
PG1500×2400	≤2000×1000×300	≤200	φ1500	2400	5	4	200	55	ZS-165-9-11
PG1500×2400	≤2000×1000×300	≤150	φ1500	2400	7	4	200	55	ZS-165-9-11
PG1800×3240	≤3000×2000×700	≤150	φ1800	3240	12	3	450	90	ZS-185-9-11
